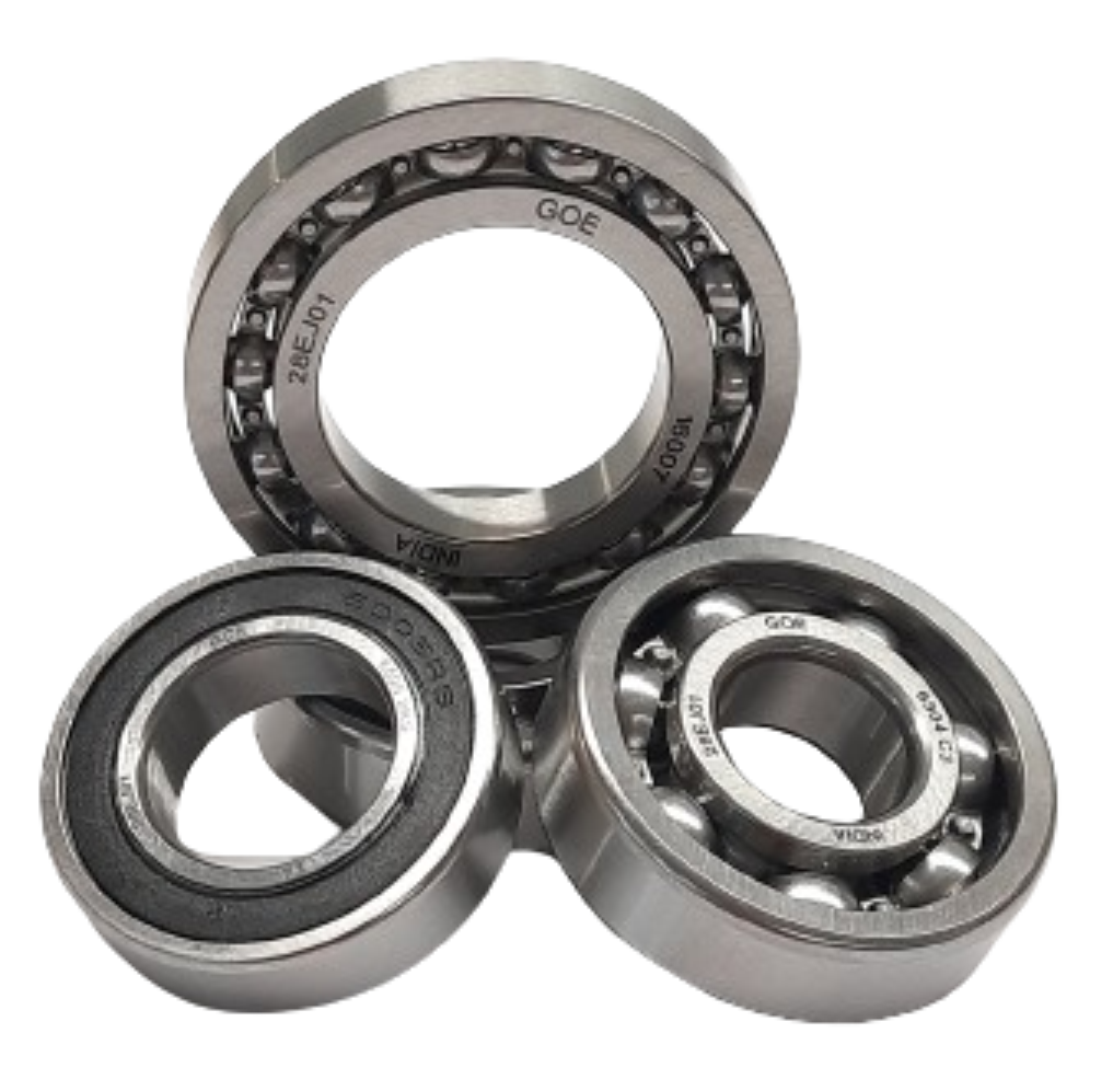

Ball Bearings
Ball bearings, especially deep groove types, are the most used due to their adaptability. Their main role is to support moving parts while absorbing and transferring forces and they are designed for low friction, minimal noise, and low vibration, which allows for high rotational speeds. They can handle radial and axial loads in both directions. Goetze ball bearings are easy to install and need less maintenance compared to other bearings and brands.
Key Features:
- High quality material, which provides better strength and longer life
- 100% vibration tested (V2 Level)
- Outer/ inner race and balls manufactured with high carbon high chromium (AIS/SAE 52100) provides enhanced load carrying capacity and lower noise level
- Improved lip of rubber seal, which provides more sealing from dust and foreign material
- Accommodates radial loads and axial loads in both the directions
- Manufactured as per ANSI/AMBA/JIS standard with maintained close tolerance
Types of Ball Bearings:
- Bearing with Rubber Seal:
- Single side Rubber seal ex – 6004 – 1RS
- Double side Rubber seal ex – 6004 - 2RS
- Bearing with Metal Seal:
- Single side Metal seal ex – 6004 Z
- Double side Metal seal ex – 6004 ZZ
- Bearing without Seal:
Viton is the best material currently available for use in many of today’s hotter-running engines, particularly the smaller domestic and imported models. It is often combined with a “metal jacket” or covering that surrounds the Viton positive seal. Viton offers excellent resistance to both heat (up to 450 F) and abrasion and is the material of choice for most valve stem seals.
| Part Number | Vehicle Application | Measurement (if any) |
|
|---|---|---|---|
| OUTER DIA in mm | HEIGT in mm | ||
| GBB6203 | Main Shaft - Victor 135/Victor 100/Star City / Star/SportFlame/Wind 125/CT-
100/ Boxer/ Caliber/BYK/Avenger 220 DTS-Si/Super Splendor / Glamour/Passion PRO/
Passion Plus/ CDN- 3/CDN/Splendor/Passion/CD-100/HF Dawn/DF Deluxe/CD-100ss/CD
Deluxe/Saplendor NXG/Splendor PRO/YBR 110/Gladiator/Sling Shot Plus/Hayate/GT
125/Dream Yuga/Dream Neo/CD 100 Dream/CB Twister/CB Trigger Drive shaft - Same as Above |
40 | 12 |
| GBB6004 | Main Shaft - Pulsar 150, 180 Normal/FZ/R15/Saluto/Fazer Cam Shaft - Alpha/Fascino/Ray Z |
42 | 12 |
| GBB6205 | Crank Shaft - Crux/Gladiator/YBR 110/Centra/Max 100R/Samurai/ Shogun/ Supra/
AX100R(Deluxe)/Scooty Streak/ PepStar City / Star/Victor 135 Rear Wheel - Vespa, Vespa Elegante, Vespa S, Vespa VX |
52 | 15 |
| GBB6202 | Transmission/Gearbox - Pulsar 150, 180 DTS-Si & Normal/Avenger 220 DTS- Si/Pleasure/Maestro/Saluto/Fascino/Ray Z/Gladiator/Alpha/GS 150R/Gixxer/Access 125 (SE)/Dio/Aviator/CBR250/Activa 125/Activa 110 OLD/Activa New | 35 | 11 |
| GBB6003 | Cam Shaft - Platina 125 DTS-Si/Platina 100/4S Champion/Karizma ZMR
225/Impulse 150/YBR 110/Gladiator Clutch Assembly - Achiever / HUNK / CBZ / CBZ Extreme/Ignitor/Impulse 150 Stator/Magneto Assembly - Ambition/Platina 100/4S Champion/ (SE)/Dio/Aviator/CBR250/Activa 125/Activa 110 OLD/Activa New |
35 | 10 |
| GBB6005 | Output Shaft RH - Discover 100, 125/Platina 125 DTS-Si Crank Shaft RH - KB 100 RTZ Cam Shaft LH - Wind 125 |
47 | 12 |
| GBB6201 | Counter shaft - Wind 125/Pleasure/Maestro/Aviator/Dio/Activa 125/Activa 100
(Old )/Activa New/ Crank case cover - 4S Champion/Platina 100/Wind 125/Centuro, Centuro-Rockstar, Centuro-NXT, Centuro XT |
32 | 10 |
| GBB6300 | Wheel - BYK | 35 | 11 |
| GBB6301 | Front Wheel - Access 125/Access 125 (SE)/Swish 125/KB 100 RTZ/Platina 125
DTS-Si/ Rear Wheel - Star City / Star/ Main Axel - Fascino/Ray Z/Alpha Drive shaft - Activa New/ Activa 110 Old/Activa 125/Aviator/Dio/Maestro/Pleasure/Duro-DZ/Flyte/Rode UZO 125 Counter shaft - Flyte/Rode UZO 125 |
37 | 12 |
| GBB6302 | Output Shaft - XCD 135 DTS-Si | 42 | 13 |
| GBB6902 | Cam Shaft - CD 100 / SLEEK / STREET / DAWN / SPLENDOUR / AMBITION/KB - 100 / CHALLENGER / BOSS / VALOCITY | 28 | 7 |
| GBB6905 | Cam Shaft - CD 100 / SLEEK / STREET / DAWN / SPLENDOUR / AMBITION/KB - 100
/ CHALLENGER / BOSS / VALOCITY Gear Shift Drum - CBR 250/Pulsar 150, 180 DTS-Si/Sling Shot Plus |
49 | 9 |
| GBB6001 | Main Shaft - CB Twister/CD 100 Dream/Dream Neo/Dream
Yuga/CDN/Splendor/Passion/CD-100/HF Dawn/DF Deluxe/CD-100ss/CD Deluxe/Saplendor
NXG/Splendor PRO/Passion PRO/ Passion Plus/ CDN- 3/Super Splendor / Glamour Clutch - Centuro, Centuro-Rockstar, Centuro-NXT, Centuro XT/Victor 135/Victor 100/Star City / Star/Flame/Centra/Apache Series RTR/Eliminator/CDN/Splendor/Passion/CD-100/HF Dawn/DF Deluxe/CD-100ss/CD Deluxe/Saplendor NXG/Splendor PRO/CBR 250/CB Unicorn Cam shaft - Pulsar 150, 180 Normal & Normal/Impulse 150/Ignitor/Achiever / HUNK / CBZ / CBZ Extreme/Gixxer/CBF Stunner/CB Unicorn Dazzler/CB Unicorn/CB Shine 125 |
28 | 8 |
| GBB6002 | Clutch assembly - Discover 100, 125/Pulsar 150, 180 DTS-Si/Pulsar 200, 220 DTS-Si Cam Shaft - Activa 100 (Old )/Hayate/Discover 100, 125/Pulsar 200, 220 DTS- Si/XCD 135 DTS-Si/Apache Series RTR |
32 | 9 |
| GBB6007 | Differential - GC 1000 | 62 | 14 |
| GBB6200 | Clutch assembly - CB Twister/CD 100 Dream/Dream Neo/Dream Yuga/Passion PRO/ Passion Plus/ CDN-3/Super Splendor / Glamour/Hayate | 30 | 9 |
| GBB6304KIT | Crank Shaft - Passion PRO/ Passion Plus/ CDN-3/Passion PRO/ Passion Plus/ CDN- 3/Platina 125 DTS-Si | 52 | 15 |
| GBB628 | Clutch - BYK 3W | 24 | 8 |
| GBB628 ZZ | Clutch Assembly - 4S Champion/Avenger 220 DTS-Si/BYK/CT-100/ Boxer/ Caliber/Platina 100/Pulsar 150, 180 DTS-Si/Pulsar 200, 220 DTS-Si/XCD 135 DTS-Si | 24 | 8 |
| GBB6002 RS | Cam Shaft - Victor 100, 135/Star City / Star/Scooty Streak/ Pep/Centra/Platina 125 DTS-Si/Platina 100/CT-100/ Boxer/ Caliber/Avenger 220 DTS-Si/Saluto/Fascino/YBR 110/Ray Z/Gladiator/FZ/Fazer/Crux/Alpha /Sling shot plus/Access 125/GS 150R | 32 | 9 |
| GBB6004 RS | Rear Wheel sprocket - Victor 100/CB Trigger Final gear shaft - Dio/Activa New/Activa 100 (Old )/Activa 125/Aviator |
42 | 12 |
| GBB6005 RS | Cam shaft - Eliminator | 47 | 12 |
| GBB6200 RS | Front Wheel - Centra/Star City / Star/Lets | 30 | 9 |
| GBB6201 RSKIT | Front Wheel - Centuro, Centuro-Rockstar, Centuro-NXT, Centuro
XT/Wego/Gusto/Swish 125/Access 125 (SE)/Activa 125/Ignitor/Impulse 150/Fazer Rear Wheel - Hayate/Crux/4S Champion/Avenger 220 DTS-Si/XCD 135 DTS- Si/Scooty Streak/ Pep Main Shaft - CB Shine 125/CB Unicorn/CB Unicorn Dazzler/CBF Stunner/Achiever / HUNK / CBZ / CBZ Extreme |
32 | 10 |
| GBB6202 RS | Rear Wheel - GS 150R/GT 125/Sling Shot Plus/Fazer/FZ/R15/YBR
110/Saluto/Ambition/KB 100 RTZ/XCD 135 DTS-Si/Vespa, Vespa Elegante, Vespa S, Vespa
VX/Apache Series RTR/Flame/Victor 135 Front Wheel - Vespa, Vespa Elegante, Vespa S, Vespa VX/XCD 135 DTS-Si/Discover 100, 125/R15/FZ/Fazer Main shaft & Input shaft - Pulsar 150, 180 DTS-Si & Normal/Pulsar 200, 220 DTS- Si/Ambition/Karizma ZMR 225/R15/ |
35 | 11 |
| GBB6002 2RS | Front Wheel - LML Trendy | 32 | 9 |
| GBB6204 RS | Main Shaft (Drive Shaft) - Apache Seriese RTR/Fiero | 47 | 14 |
| GBB6205 RS | Cranks Shaft - Pleasure/Maestro/Dio/Aviator/Activa 125/Activa 110 Old/Activa
New/Sport/Victor 100/Wego Rear Wheel Sprocket - Apache Series RTR/ Max 100R/Samurai/ Shogun/ Supra/ AX100R(Deluxe)/Max 4R/Fiero/Sport/Victor 135 |
52 | 15 |
| GBB6300 RS | Front and Rear wheel -Hayate, CT-100/ Boxer/ Caliber, Avenger 220 DTS-Si | 35 | 11 |
| GBB6301 RSKIT | Rear Wheel - CB Shine 125/CB Twister/CD 100 Dream/Dream Neo/Dream
Yuga/Hayate/Gladiator/CDN/Splendor/Passion/CD-100/HF Dawn/DF Deluxe/CD-100ss/CD
Deluxe/Saplendor NXG/Splendor PRO/Passion PRO/ Passion Plus/ CDN-3/Super Splendor /
Glamour/4S Champion/Platina 100/Platina 125 DTS-Si/XCD 135 DTS-Si/Apache Series
RTR/Centra/Max 100R/Samurai/ Shogun/ Supra/ AX100R(Deluxe)/Max 4R/Fiero/Victor
100/Duro-DZ/Rode UZO 125 Front Wheel - Same as above |
37 | 12 |
| GBB6302 RS | Rear Wheel - CB Unicorn/Gixxer/GS 150R/GT 125/Sling Shot Plus/Achiever / HUNK
/ CBZ / CBZ Extreme/Ignitor Front Wheel - Discover 100, 125/XCD 135 DTS-Si Cam Shaft - Pulsar 200, 220 DTS-Si/Pulsar 150, 180 Normal/Pulsar 200, 220 DTS- Si/Discover 100, 125/Avenger 220 DTS-Si |
42 | 13 |
| GBB6001 2RS | Crank Case cover - Super Splendor / Glamour Cam Shaft - Rode UZO 125/Duro-DZ/Vespa, Vespa Elegante, Vespa S, Vespa VX Counter shaft - Apache Series RTR/Fiero |
28 | 8 |
| GBB6004 2RS | Rear Wheel sprocket - Avenger 220 DTS-Si/CT-100/ Boxer/ Caliber/Platina 125 DTS-
Si/Pulsar 150, 180 DTS-Si/Pulsar 150, 180 Normal/Pulsar 200, 220 DTS-Si/Wind 125 Rear hub sprocket - Platina 100/Pleasure |
42 | 12 |
| GBB6005 2RS | Rear Wheel Sprocket - CB Unicorn/CB Unicorn Dazzler/Achiever / HUNK / CBZ / CBZ Extreme/Ignitor/Impulse 150/Karizma ZMR 225/Ambition/Bullet 500/Bullet Machismo/Classic 350/Classic 500/New Version of TB ( NT51 ) 350/New Version of TB ( VT31 ) 500/STD Bullet 350/Thunderbird 500/Electra 350 | 47 | 12 |
| GBB6200 2RS | Front Wheel -Avenger 220 DTS-Si, 4S Champion | 30 | 9 |
| GBB6201 2RSS | Front Wheel - CT-100/ Boxer/ Caliber/Duro-DZ/Flyte/Kine/Rode UZO 125 | 32 | 10 |
| GBB6202 2RS | Rear Wheel - Eliminator/Pulsar 200, 220 DTS-Si/Pulsar 150, 180 Normal and DTSi/ Front Wheel - Eliminator Gear primary drive - Alpha/Ray Z/Fascino |
35 | 11 |
| GBB6203 2RS | Rear Wheel - Bullet 500/Bullet Machismo/Classic 350/New Version of TB ( NT51 )
350/New Version of TB ( VT31 ) 500/STD Bullet 350/Thunderbird 500/Electra 350 Front Wheel - Same as above Rear Wheel Sprockrt - CB Shine 125/CB Twister/CD 100 Dream/Dream Neo/Dream Yuga/CDN/Splendor/Passion/CD-100/HF Dawn/DF Deluxe/CD-100ss/CD Deluxe/Saplendor NXG/Splendor PRO/Passion PRO/ Passion Plus/ CDN-3/Super Splendor / Glamour |
40 | 12 |
| GBB6204 2RS | Drive shaft - Access 125/Access 125 (SE)/Swish 125 Rear Wheel Sprocket - CBR 250 Axle Shaft (Right) - Gusto |
47 | 14 |
| GBB6205 2RS | Rear Wheel sprocket - GT 125/Sling Shot Plus | 52 | 15 |
| GBB6300 2RS | Front Wheel - CT-100/ Boxer/ Caliber | 35 | 11 |
| GBB6301 2RS | Front Wheel - CB Trigger/CB Unicorn/CB Unicorn Dazzler/GS 150R/GT 125/Sling
Shot Plus/Achiever / HUNK / CBZ / CBZ Extreme/Ignitor/Impulse 150/Karizma ZMR
225/Pulsar 150, 180 DTS-Si/Pulsar 150, 180 Normal/Pulsar 200, 220 DTS-Si/Wind 125 Rear Wheel - Centuro, Centuro-Rockstar, Centuro-NXT, Centuro XT/CT-100/ Boxer/ Caliber/BYK/CBF Stunner/ |
37 | 12 |
| GBB6301 2RS | Front Wheel - CB Trigger/CB Unicorn/CB Unicorn Dazzler/GS 150R/GT 125/Sling
Shot Plus/Achiever / HUNK / CBZ / CBZ Extreme/Ignitor/Impulse 150/Karizma ZMR
225/Pulsar 150, 180 DTS-Si/Pulsar 150, 180 Normal/Pulsar 200, 220 DTS-Si/Wind 125 Rear Wheel - Centuro, Centuro-Rockstar, Centuro-NXT, Centuro XT/CT-100/ Boxer/ Caliber/BYK/CBF Stunner/ |
37 | 12 |
| GBB6302 2RS | Rear Wheel - CB Trigger/CB Unicorn Dazzler/Karizma ZMR 225/Eliminator/Pulsar 150, 180 DTS-Si & Normal/Pulsar 200, 220 DTS-Si/Wind 125 Front Wheel - CBR 250/R3/Eliminator |
42 | 13 |
| GBB6204 C3 | Main Shaft (Drive Shaft) - Max 100R/Samurai/ Shogun/ Supra/ AX100R(Deluxe) | 47 | 14 |
| GBB6304 C3KIT | Differential - Atul Auto Ltd | 52 | 15 |
| GBB6204 | Drive shaft - Activa New/Activa 125/Aviator/CB Trigger/Dio/Crux/Gladiator/R15/YBR 110/Achiever / HUNK / CBZ / CBZ Extreme/Ignitor/Impulse 150/Karizma ZMR 225/Duro-DZ/Flyte/Kine/Flyte/Kine/Rode UZO 125/Gusto |
47 | 14 |
| GBB16007 | Differential - RE 4S/FE 4S/Garuda/TVS King Gear Housing - RE 2S |
62 | 9 |
