Plastic to Metal Bush for Peugeot and Citroën| MOOG

DID YOU KNOW: ADVICE FOR THE PROFESSIONAL

The friction coefficient between steel (the arm body material) and plastic (the bush outer tube material) is very poor. This is why MOOG has replaced the plastic bush with one of a metal design.

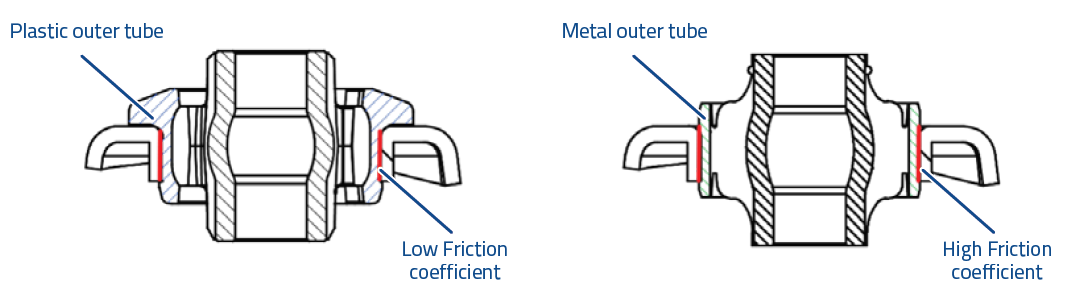

MOOG - Plastic to Metal Bush - Plastic vs. Metal Outer

Whilst the plastic bushes remain secure under normal driving conditions, a high impact (such as a kerb, pothole, or raised surface, especially at a roundabout) can generate the force required to cause the plastic bush to pop out from its arm body bore.

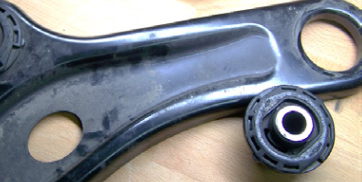

MOOG - Plastic to Metal Bush - Track Control Arm

OVERVIEW

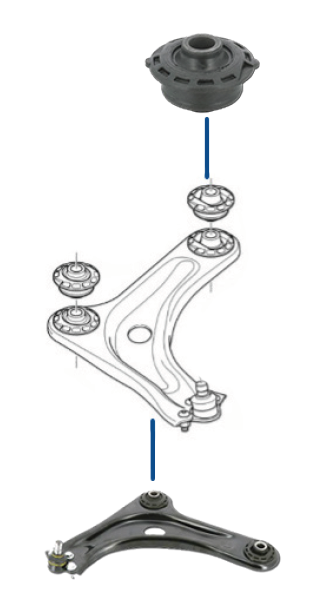

Early models of the Citroën C2 and C3 were equipped with wishbone arms fitted with plastic-tube bushes :

APPLICATIONS:

CITROEN C2 - C3 2003 --> 2009
PEUGEOT 1007 2005-->

PLASTIC TO METAL BUSH

MOOG Engineers have consistently sought to improve the pull-out force of its plastic bushes and have achieved performance which exceeds that of OE parts.

However, the poor friction coefficient of plastic material versus steel means that there will always be a potential weakness. With this in mind, MOOG has permanently substituted the plastic outer tube technology with a stronger metal solution.

MOOG - Plastic to Metal Bush - Track Control Arms - CI-TC-0933/0932 - CI-WP-12503/12504

With this metal technology, MOOG has managed to exceed the pull out value of its OE and competitor equivalents, making MOOG control arms better equipped to deal with unforeseen impacts.

The content contained in this article is for entertainment and informational purposes only and should not be used in lieu of seeking professional advice from a certified technician or mechanic. We encourage you to consult with a certified technician or mechanic if you have specific questions or concerns relating to any of the topics covered herein. Under no circumstances will we be liable for any loss or damage caused by your reliance on any content.

OTHER INSTALLATION TIPS

{{lede.imageAlt}} — {{lede.heading}}

{{lede.date | date:'dd-MMM-yyyy'}}{{lede.tags.length > 0 && lede.date ? ' | ' : ''}}{{lede.tags.join(', ')}}

Read more

THE PROBLEM SOLVER

We make the job easier by making our products better. This is how MOOG has earned its reputation as the chassis industry’s problem solver for 100 years: by constantly introducing design enhancements that extend product life and simplify installation and replacement.

Discover more

MOOG_MO2402_The-Problem-Solver_Yellow-White-Tag_RGB_EN

REMARKEABLE QUALITY:
5-YEAR WARRANTY

Each MOOG Steering and Suspension product is tested to the highest standars, worthy of the MOOG name and backed up by our new 5-year warranty.

Discover 5-year warranty

MOO054_1080x1080px_Products_5y Warranty_01

PLASTIC TO METAL BUSH FOR PEUGEOT 1007 AND CITROËN C2/C3
