2007 Chrysler Sebring 2.4L (High school students need help)

by instructor t on Jul 27 2017, 6:17 PM

Hello,

I am an automotive Instructor at High school level. This post is for my students and by my students! I would like to show them how the forums work and the students chose this forum. To see if people in the industry can help problem solve!

This is a real problem that they need help finding the solution to! All them from here out!

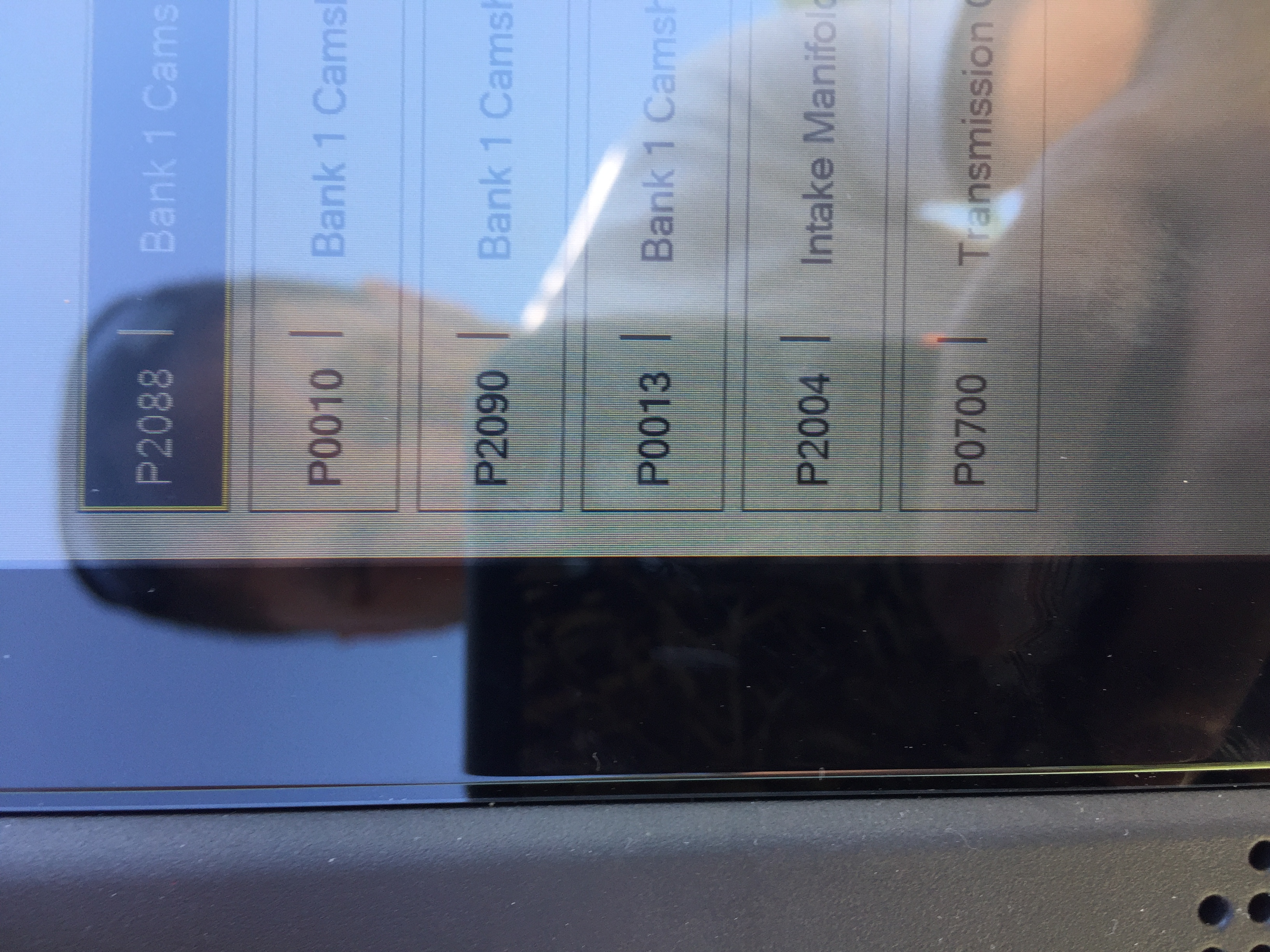

We have a 2007 Chrysler Sebring 2.4L with a crank but not start condition! Codes are attach in picture

P codes P0010 P2090 P0013 P2004 P0700 (from snap-on Verus)

cranks but will not start- fuel ✔️ Air✔️ Fire✔️( but seems weak)

Battery voltage 11.4 ( we are replacing battery)

EX cam sensor 3.4V 7.1 ohms

Int cam sensor 2.6V 7.0 ohms

we have all data to use in class/shop

we would like to see if any of you have ran across this problem in the past and does anyone have any quick fixes!


You must be signed in to reply or vote on this post.

13 Replies

By knt auto sales Oct 04 2018, 1:48 PM

Any word on a fix for this vehicle yet?

Sign in to vote 0
By knt auto sales Sep 18 2018, 5:40 PM

Check the timing belt and make sure it has not jumped a tooth. These cars are known for timing issues as well as pcm issues. Check for proper fuel pressure, normally if you have air, fuel and spark even a weak spark the vehicle will run just not well. My guess is timing is out so your not getting spark and fuel at the correct time.

Sign in to vote 0
By bobsun23 Dec 19 2017, 4:02 PM

Could be internal pcm but also the timing belt could have jumped.

Sign in to vote 0
By maxdoss3 Nov 13 2017, 9:50 PM

I'll agree with crazy cory due to my lack of experience with chyrsler being minimal, but personally I would check your PCM first, like mekanicnine said.

Sign in to vote 0
By achavez5960 Nov 08 2017, 9:24 PM

Crazy cory is right.

Sign in to vote 0
By eurickabron Oct 31 2017, 5:15 PM

CHECK KEYS, MAKE SURE HAVE KEY WITH CHIP

Sign in to vote 0
By kleedus306 Sep 13 2017, 5:15 AM

I agree with Cory scope the ckp and make sure the pattern is correct and make sure the signal is reaching the pcm

Sign in to vote 0
By lorneking Aug 04 2017, 4:27 PM

Agree with crazy cory!

Sign in to vote 0
By zekethetweak Aug 02 2017, 2:16 AM

DId you figure it out? What was the fix?

Sign in to vote 0
By shadetreetech Aug 01 2017, 8:04 PM

After some research on Identifix; Most likely cause is a blown Fuse #26. There are also some transmission wiring problems for a P0700. maybe the cause for the blown fuse is near the transmission range selector

Sign in to vote 0
